Modern diesel vehicles use Selective Catalytic Reduction (SCR) to reduce nitrogen oxide (NOx) emissions. At the centre of that system is AdBlue, also known as Diesel Exhaust Fluid or DEF.
When the system is operating correctly, it works almost unnoticed. When something fails, however, the vehicle may display an AdBlue warning, engine-management light, reduced-power condition or even a no-restart countdown.
The important point is that an AdBlue warning does not automatically mean the tank, pump, NOx sensor or SCR catalyst needs replacing.
A proper diagnosis starts with understanding how the complete system operates.
What Is AdBlue?
AdBlue is a solution containing approximately 32.5% high-purity urea and 67.5% demineralised water.
It is stored separately from the diesel fuel and injected into the exhaust system when operating conditions require it.

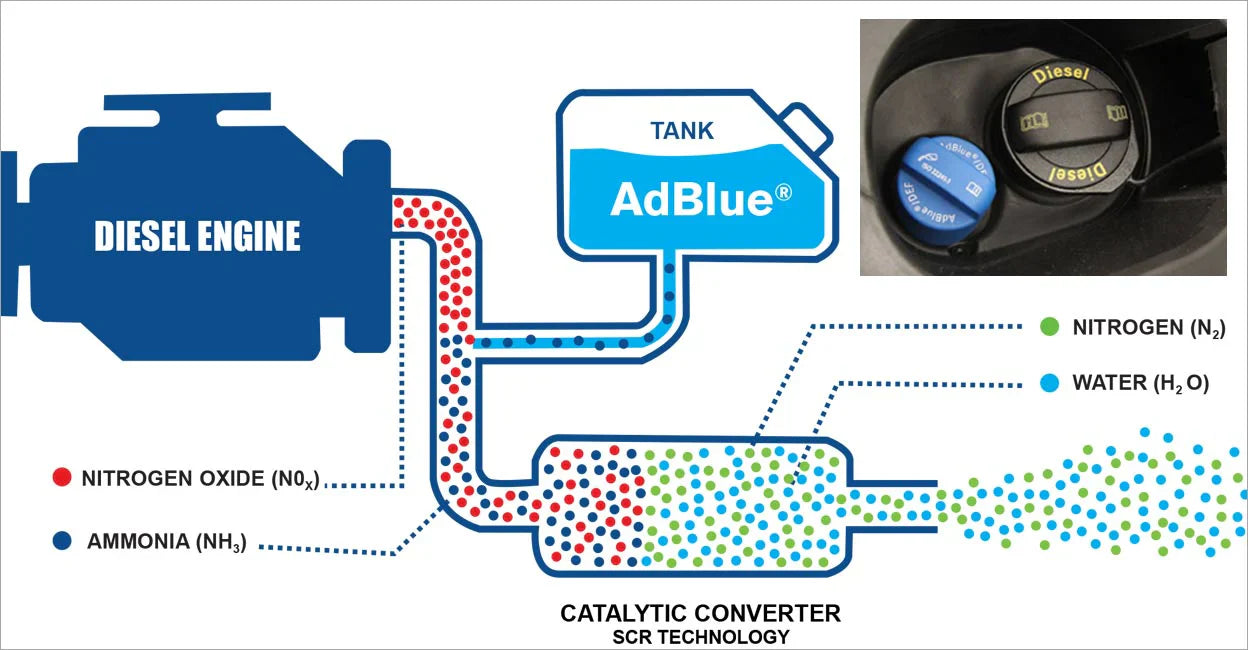

The process is broadly:
- The ECU determines how much reductant is required.
- The AdBlue pump generates the required pressure.
- The dosing injector sprays AdBlue into the exhaust.
- Exhaust heat converts the urea into ammonia.
- Ammonia reacts with NOx inside the SCR catalyst.
- The reaction converts NOx primarily into nitrogen and water vapour.
The ECU then uses information from the NOx sensors and other system inputs to determine whether the process is working correctly.
Main Components of an AdBlue / SCR System
Although layouts vary between manufacturers, a modern SCR system commonly contains:
- AdBlue / DEF tank
- Fluid-level sensor
- Temperature sensor
- Tank or line heater
- AdBlue pump
- Pressure sensor
- Heated delivery lines
- Dosing injector
- Exhaust-temperature sensors
- Upstream NOx sensor
- Downstream NOx sensor
- SCR catalyst
- Engine ECU and/or dedicated SCR control module
A fault in any one of these areas can result in an AdBlue or emissions warning.
That is why replacing the component mentioned in a diagnostic description without further testing can become very expensive.
How Does the ECU Know the SCR System Is Working?
The vehicle continuously monitors SCR operation.
Depending on the platform, the ECU may analyse:
- AdBlue pressure
- Pump operation
- Injector command
- Fluid level
- Fluid temperature
- Reductant quality
- Upstream NOx concentration
- Downstream NOx concentration
- Exhaust temperature
- SCR conversion efficiency
- Electrical supply
- CAN communication
The ECU does not simply check whether AdBlue exists in the tank.
It checks whether the entire emissions-control process produces the expected result.
Why Do AdBlue Systems Fail?
There is no single “AdBlue fault”.
Several very different failures can produce similar dashboard messages.
1. Crystallised AdBlue
When AdBlue dries, it can form white crystalline deposits.
These deposits can affect:
- Dosing injectors
- Pipework
- Connections
- Tank assemblies
- Pump systems
A restricted injector may prevent the ECU from delivering the amount of reductant it expects.
2. AdBlue Pump or Pressure Faults
The dosing system normally requires a controlled operating pressure.
If pressure is too low, unstable or takes too long to build, the ECU may record faults such as P20E8 – Reductant Pressure Too Low.
Possible causes include:
- Weak pump
- Restriction
- Internal leakage
- Pressure-sensor fault
- Wiring fault
- Supply-voltage problem
A pressure-related DTC therefore does not automatically prove that the pump itself has failed.
3. NOx Sensor Faults
NOx sensors are critical to SCR monitoring.
One sensor typically measures exhaust NOx before the catalyst while another may monitor emissions after the SCR process.
Common problems include:
- Sensor degradation
- Internal electronics failure
- Heater faults
- Wiring damage
- Connector corrosion
- Supply-voltage problems
- Communication faults
- Implausible readings
A NOx fault should always be interpreted alongside the live sensor data.
4. AdBlue Dosing Injector Faults
The dosing injector must deliver the correct quantity of reductant with the correct spray characteristics.
Possible problems include:
- Blockage
- Crystallisation
- Electrical failure
- Poor spray pattern
- Mechanical sticking
- Supply problems
If dosing is incorrect, the SCR catalyst cannot achieve the expected NOx conversion efficiency.
5. Heater and Temperature Faults
Because AdBlue freezes at low temperatures, SCR systems use heaters to maintain normal operation in cold conditions.
Heater faults may involve:
- Tank heater
- Supply-line heater
- Wiring
- Relay or driver circuitry
- Temperature sensors
Depending on the vehicle strategy, heater faults can eventually trigger an emissions warning or inducement countdown.
6. Wiring and Communication Problems
Some of the most expensive misdiagnoses begin with a simple electrical fault.
SCR systems can suffer from:
- Broken wiring
- Corroded connectors
- Poor earths
- Low supply voltage
- Water ingress
- CAN communication faults
For example, a communication DTC involving a NOx sensor does not automatically mean the NOx sensor needs replacing.
Power, ground and network communication should also be checked.
Common AdBlue & SCR Fault Codes
These are some of the codes frequently encountered during diagnosis.
P20EE — SCR NOx Catalyst Efficiency Below Threshold
The ECU has determined that SCR conversion efficiency is below the expected threshold.
Possible diagnostic areas include:
- NOx sensor plausibility
- Dosing performance
- Injector condition
- Exhaust leakage
- AdBlue quality
- SCR catalyst performance
P20EE alone should not be used to condemn the catalyst.
P204F — Reductant System Performance
A general SCR-system performance fault.
Potential causes can include:
- Pump pressure
- Dosing control
- Sensor faults
- Electrical supply
- SCR monitoring failure
Further testing is required to establish which part of the system is responsible.
P20E8 — Reductant Pressure Too Low
The SCR system cannot achieve or maintain the required reductant pressure.
Areas to investigate include:
- AdBlue pump
- Pressure sensor
- Restrictions
- Leakage
- Wiring
- Electrical supply
P207F — Reductant Quality Performance
The ECU has detected reductant quality or resulting SCR performance outside the expected range.
Possible diagnostic areas include:
- AdBlue contamination
- Incorrect concentration
- Quality-sensor information
- Dosing performance
- Other SCR faults affecting calculated efficiency
U029D — Lost Communication With NOx Sensor
Communication with a NOx sensor module has been lost.
Before replacing the sensor, check:
- Power supply
- Earth
- Connectors
- Wiring
- Water ingress
- CAN communication
P229F — NOx Sensor Range / Performance
The sensor may still be communicating, but its reported data is outside the expected operating range.
Live-data analysis is particularly important with this type of fault.
What Happens When an SCR Fault Is Ignored?
Modern diesel vehicles may use an inducement strategy when the emissions system remains faulty.
The driver may initially see:
- AdBlue warning
- Emissions warning
- Engine-management light
If the fault remains unresolved, the vehicle may progress to:
- Reduced performance
- Repeated warning messages
- Mileage countdown
- “Starting impossible in XXX miles”
- Restart restriction
The exact strategy varies by manufacturer.
Simply clearing the fault codes normally does not resolve the underlying problem. Once the ECU runs its monitor again, the same fault can return.
Why Does the AdBlue Warning Stay On After Topping Up?
Topping up only solves a warning that was genuinely caused by low AdBlue level.
It will not correct faults involving:
- Pump pressure
- NOx sensors
- Dosing injector
- SCR efficiency
- Heater system
- Wiring
- Communication
- Fluid-quality monitoring
This is why customers sometimes fill the tank and still see the same warning immediately afterwards.
The Correct Diagnostic Approach
Professional SCR diagnosis should be data-led, not parts-led.
At Precision Remaps UK, the diagnostic process may include:
1. Complete Diagnostic Scan
Relevant engine, SCR and emissions-related control modules are scanned for stored and pending faults.
2. Freeze-Frame Analysis
The conditions present when the fault was detected can provide important diagnostic context.
3. Live-Data Analysis
Depending on the vehicle, this can include:
- NOx sensor values
- AdBlue pressure
- Pump commands
- Dosing information
- Exhaust temperatures
- Fluid level
- System status
4. Electrical Checks
Power, earth, wiring and communication faults must be ruled out where appropriate.
5. Component and System Testing
Pressure tests, actuator tests, dosing checks and manufacturer-specific diagnostic procedures may then be performed.
6. Verify the Result
Once the cause has been addressed, the relevant system data is checked again and the vehicle is re-tested.
Why Guessing Can Become Expensive
One SCR fault code can have several possible causes.
For example:
P20EE does not necessarily mean “replace the SCR catalyst”.
It may instead be related to:
- Incorrect NOx readings
- Poor reductant dosing
- Blocked injector
- Exhaust leak
- Fluid problem
- Temperature issue
Likewise:
U029D does not automatically mean “replace the NOx sensor”.
The fault could be caused by a damaged connector or loss of electrical supply.
This is why diagnosis should come before parts replacement.
Repair, Software and Vehicle Compliance
Where a road vehicle is fitted with an emissions-control system, any repair or calibration work must take account of the vehicle's intended use and applicable roadworthiness and emissions requirements.
The appropriate solution depends on:
- The actual fault
- Vehicle application
- ECU strategy
- Component condition
- Repair options
- Intended vehicle use
- Applicable legal requirements
A professional technician should explain the available options rather than applying a generic one-size-fits-all solution.
Why Poor Calibration Work Can Cause Further Problems
SCR and engine-management strategies interact with several other functions.
Poor-quality ECU calibration can potentially affect:
- Diagnostic monitoring
- Torque management
- DPF regeneration
- Exhaust-temperature control
- Fault handling
- Readiness monitoring
- Vehicle drivability
For that reason, ECU work should be based on the correct software version and vehicle configuration, with the result checked afterwards.
Generic patching without understanding the underlying ECU strategy can create additional faults rather than solving the original complaint.
The Takeaway
An AdBlue warning is the symptom, not necessarily the diagnosis.
The correct process is:
Read the faults → analyse the data → test the system → identify the cause → carry out the appropriate work → verify the result.
That approach prevents unnecessary parts replacement and gives the best chance of resolving the fault correctly the first time.
