Introduction
The Diesel Particulate Filter (DPF) is one of the most misunderstood components in modern diesel vehicles.
Drivers are told:
• “It traps soot.”
• “It needs regeneration.”
• “It can get blocked.”
But few explain why it blocks, what the ECU is actually doing during regeneration, and how to tell the difference between a normal regeneration event and a failing DPF system.
Understanding this properly saves:
• Unnecessary part replacements
• Repeat breakdowns
• Expensive garage visits
This guide explains what a DPF does, how it works, and why blockages occur.

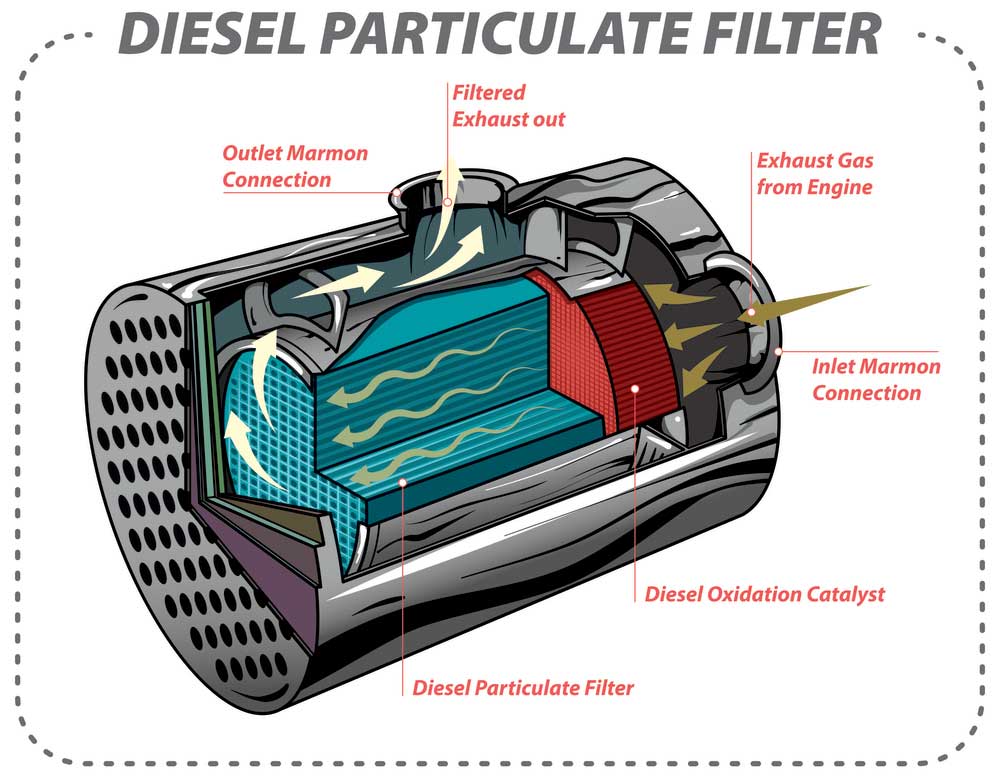

What a DPF Actually Does
A DPF is a ceramic filter in the exhaust that:
• Captures soot particles
• Stores them in microscopic channels
• Prevents particulate emissions leaving the tailpipe
Over time, soot accumulates.
To prevent clogging, the system performs regeneration — burning soot into ash.
The Two Types of Regeneration
Passive Regeneration
Occurs when:
• Exhaust temperatures are naturally high
• Sustained motorway driving
• No driver intervention required
This is the cleanest and healthiest regeneration method.
Active Regeneration
Triggered when:
• Soot load reaches a threshold
• ECU injects extra fuel
• Exhaust temperature is artificially raised
This burns soot while driving.
If active regeneration fails repeatedly, the DPF begins to block.
Why DPFs Block
A DPF blocks when:
• Too many short journeys
• Frequent interrupted regenerations
• Faulty EGR increasing soot
• Boost leaks causing rich combustion
• Injector issues
• Low exhaust temperatures
• Poor-quality remaps
Blocked DPFs are rarely “random failures”.
They are symptoms of an underlying fault.
What Happens When a DPF Blocks
As soot load rises:
• Exhaust backpressure increases
• Turbo works harder
• Fuel consumption rises
• Engine power drops
• Regeneration frequency increases
Eventually:
• Regeneration fails
• Limp mode activates
• Warning lights appear
Ignoring this stage risks:
• Turbo damage
• EGT sensor failure
• Engine oil dilution
Soot vs Ash: The Important Difference
• Soot burns during regeneration
• Ash does not burn
Ash comes from:
• Engine oil additives
• Metallic fuel additives
Over very high mileage:
• Ash fills the DPF permanently
• Cleaning or replacement is required
No remap or regen can remove ash.
How the ECU Knows the DPF Is Blocking
The ECU monitors:
• Differential pressure across DPF
• Exhaust gas temperatures
• Distance since last regen
• Soot load model
From this it calculates:
• When to regenerate
• When to warn the driver
• When to limit power
Live data makes DPF diagnosis precise.
Common Myths
“DPF delete is the only solution.”
False. Many DPF issues are repairable.
“A forced regen fixes everything.”
False. It only burns soot, not fix underlying faults.
“My DPF is blocked, so it must be replaced.”
False. Often the root cause is elsewhere.
The Takeaway
A DPF is a self-cleaning filter — when the engine is healthy.
Blockages happen when:
• Driving patterns
• Engine faults
• Poor calibration
…prevent normal regeneration.
Understanding this saves money, time, and unnecessary part changes.
