Introduction: Airflow Sensors and Engine Control

Modern engines rely on accurate airflow measurement to calculate correct fuelling, ignition timing, and boost regulation. This data comes from either the MAF (Mass Air Flow) sensor, the MAP (Manifold Absolute Pressure) sensor, or in some cases both.

These sensors directly influence:

Fuel injection quantity
Ignition timing
Turbo boost control
EGR operation
Emission performance

When airflow data becomes inaccurate, the ECU delivers incorrect fuelling. The result is hesitation, loss of power, excess smoke, or poor fuel economy. This guide explains how to diagnose MAF and MAP sensor faults using fault codes, live data, and physical inspection.

Step 1: Recognising Symptoms of MAF or MAP Sensor Failure

Common symptoms include:

• Check Engine Light illuminated

• Hesitation or flat throttle response

• Black smoke under acceleration (especially diesel engines)

• Poor fuel economy

• Rough or hunting idle

• Turbo not spooling correctly

Severe faults often trigger limp mode to prevent engine damage from incorrect fuelling or boost control.

Step 2: Scan for Fault Codes

Start with an OBD diagnostic scan. Common airflow-related fault codes include:

Always review freeze-frame data to see engine load and RPM when the fault occurred. This helps confirm whether the problem appears under idle, cruising, or boost conditions.

Step 3: MAF vs MAP – Understanding the Difference

MAF Sensor

Measures actual airflow entering the engine (grams per second).
Usually located after the air filter.
Used for precise fuel calculation.
Common on petrol and many diesel engines.

MAP Sensor

Measures intake manifold pressure (kPa or bar).
Mounted on the intake manifold or boost pipe.
Used for turbo boost control and load calculation.
Common on turbocharged engines.

Some vehicles use both sensors and cross-check readings. When they disagree, correlation faults such as P0068 appear.

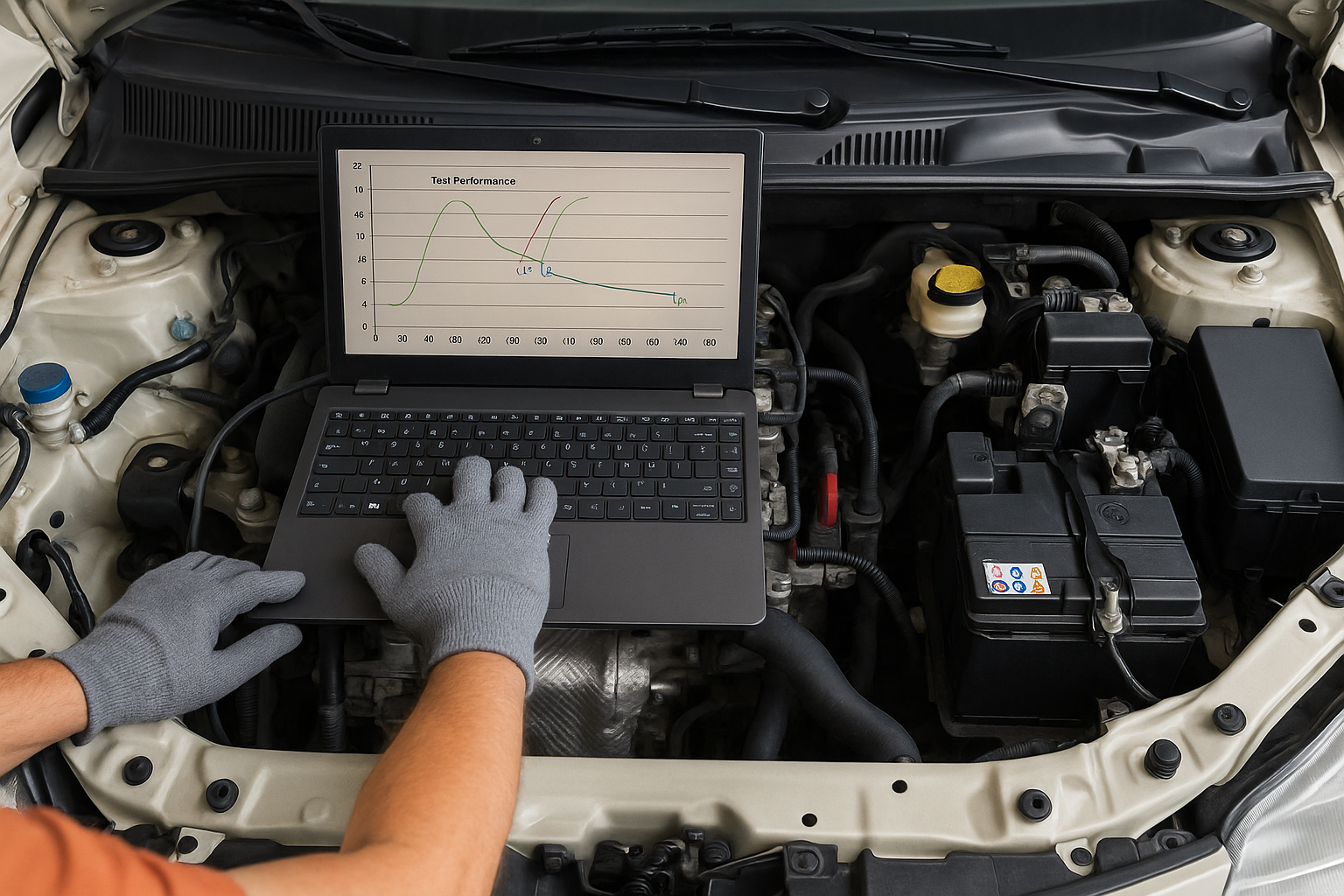

Step 4: Checking Live Sensor Data

Live data is the most reliable diagnostic method.

Expected MAF Readings

Idle: 2–5 g/s
Light throttle: 10–30 g/s
Wide open throttle: 100–300+ g/s (turbo engines)

Older analogue MAFs output approximately 0.5V at idle rising to 4.5V at full load.

Dropouts, frozen values, or implausible airflow readings confirm a faulty MAF or wiring issue.

Expected MAP Readings

Key on, engine off: ~100 kPa (1 bar atmospheric)
Idle: 30–45 kPa
Under boost: 180–250 kPa depending on engine

A MAP sensor stuck at atmospheric pressure during boost indicates a failed sensor or boost leak. Spikes or erratic values suggest wiring or reference voltage faults.

Graphing these values during a road test quickly reveals abnormal behaviour.

Step 5: Physical Inspection and Cleaning

MAF Sensor Checks

• Unplugging the MAF may improve running if the sensor is faulty

• Inspect for oil or dust contamination

• Clean only using dedicated MAF cleaner

• Never touch the sensing element

Oiled aftermarket air filters are a common cause of contaminated MAF sensors.

MAP Sensor Checks

• Inspect vacuum or boost reference hose for splits

• Check for carbon buildup on diesel engines

• Ensure the sensor port is not blocked

• Confirm tight electrical connections

Step 6: Voltage and Circuit Testing

MAF Testing

• Analogue output typically 0.5V–4.5V

• Digital MAFs must be checked via scan tool airflow data

• Resistance testing is not reliable due to internal circuitry

No signal or fixed voltage usually indicates a failed sensor or wiring fault.

MAP Testing

• 5V reference and ground present

• Signal voltage around 1.5V at idle

• Rising toward 3.0V+ under boost

No signal change indicates sensor failure, blocked port, or wiring issue.

Step 7: Avoid Misdiagnosis

Some faults mimic airflow sensor problems:

Always confirm live data before replacing parts.

MAF and MAP Sensor Maintenance Tips

• Replace air filters regularly

• Avoid oiled performance filters near MAF sensors

• Use OEM or branded sensors (Bosch, Denso, Delphi)

• Reset ECU adaptations after replacement

Cheap aftermarket sensors often cause recurring faults.

MAF & MAP Diagnostics at Precision Remaps

Precision Remaps provides:

Live airflow and boost data logging
Sensor voltage and wiring integrity checks
MAF/MAP calibration verification during tuning
Boost vs airflow cross-analysis
Pre-tune engine health checks

Website: https://precisionremapsuk.com
Email: admin@precisionremapsuk.com

Diagnostic Summary

MAF measures airflow; MAP measures intake pressure
Live data confirms accurate sensor operation
Faulty readings cause hesitation, smoke, and poor economy
Cleaning or replacement restores correct fuelling
OEM-grade sensors provide long-term reliability
