Introduction
Ask most people how they check turbo performance and they’ll say:
“I looked at boost pressure. It hits target, so the turbo’s fine.”
That assumption is one of the most common diagnostic traps in modern vehicles.
On many ECUs, the boost pressure value you see in live data is not raw manifold pressure. It’s a modelled, filtered, or calculated value created by the ECU’s internal control logic. Sometimes it’s close to reality. Sometimes it’s politely lying to you.
This guide explains why boost PIDs can be misleading, how ECUs model boost, and why MAF g/s must always be checked alongside boost when tuning or diagnosing turbo systems.
What a Boost PID Actually Is
When you view “Boost Pressure” in a scan tool, you are reading a Parameter ID (PID). That PID can represent:
• Raw MAP sensor voltage converted to pressure
• A filtered version of MAP
• A modelled target value
• Or a blend of sensor + model
Which one you get depends on:
• ECU manufacturer
• Software strategy
• Diagnostic protocol
• Tool being used
This means two tools can show different boost values from the same car.
Why ECUs Model Boost Instead of Showing Raw
Modern ECUs don’t simply read boost and react. They predict boost.
They use:
• Turbo efficiency maps
• Intake air temperature
• Atmospheric pressure
• Requested torque
• Engine speed

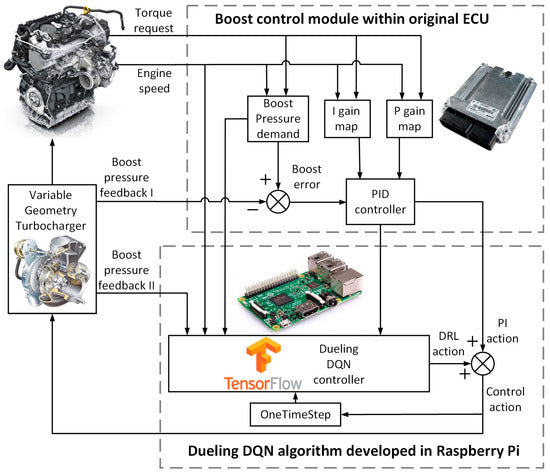

From this, the ECU builds a boost model. It compares:
Requested Boost vs Modelled Boost vs Sensor Feedback
If the difference is small, the ECU assumes everything is fine and reports the modelled value — not always the raw sensor.
This keeps control stable, but it hides real-world problems.
Common Situations Where Boost PID Lies
1) Small Boost Leaks
A minor intercooler leak may reduce real airflow, but the ECU increases turbo duty to maintain modelled boost.
Result:
• Boost PID looks normal
• MAF g/s is low
• Real power is down
2) Sticky VNT Vanes
Turbo vanes respond slower than the model expects.
ECU smooths the reported boost.
Result:
• Boost PID looks stable
• Real boost oscillates
• MAF shows unstable airflow
3) Overboost Protection
ECU briefly overshoots real boost but reports a clipped PID to avoid false fault triggers.
4) Bad Remap Boost Control
Poor PID tuning causes oscillation.
Reported boost is damped.
Actual manifold pressure swings more than the PID shows.
The Classic Trap: “Boost Is Fine But Car Is Slow”
You’ll see logs like:
• Boost PID: 1.6 bar (as expected)
• MAF g/s: 185 (should be 230)
The car feels weak.
Mechanic says: “Boost is fine.”
Reality:
• Turbo is working harder to hit pressure
• But airflow mass is low
• Meaning restriction, leak, or poor volumetric efficiency
Pressure without mass is just compressed disappointment.
Why MAF g/s Always Tells the Truth
MAF directly measures:
Actual air mass entering the engine
No modelling.
No smoothing.
No prediction.
If boost PID says “all good” but MAF is low:
• There is a real airflow problem
• Or the map is torque-limited
• Or intake/exhaust flow is restricted
Either way — MAF wins the argument.
When Boost PID Is Still Useful
Boost data isn’t useless. It’s helpful for:
• Checking turbo control response
• Seeing requested vs actual trends
• Detecting limp mode
• Spotting gross overboost/underboost
But it should never be used alone to validate performance.
How Professionals Log Turbo Health
A proper turbo diagnostic log includes:
• Boost PID
• MAF g/s
• RPM
• Throttle
• Turbo duty or vane position (if available)
Then we compare:
• Does boost rise smoothly?
• Does MAF rise proportionally?
• Do both peak where expected?
If boost rises but MAF doesn’t — airflow problem.
If MAF rises but boost doesn’t — sensor or modelling issue.
Practical Example
Vehicle logs:
• Boost PID: 1.55 bar
• MAF: 205 g/s
• Expected for setup: ~240 g/s
Diagnosis:
• ECU is commanding extra turbo duty to hit target pressure
• But real airflow is restricted
• Likely intercooler hose leak or clogged intake
No fault codes. No obvious symptoms.
Only MAF reveals it.
The Takeaway
Boost pressure is part of the story.
Airflow is the truth.
Once you understand that boost PIDs can be modelled or filtered, you stop trusting single numbers and start reading real engine behaviour.
That’s the difference between guessing and diagnosing.
