Introduction
A K04 conversion on the EA113 2.0 TFSI transforms the MK5 GTI from a quick hatch into a genuinely fast car.
But fitting the turbo is the easy part.
Controlling it correctly is where most builds fail.
Overboost, surge, timing pull, broken rods, slipping DSG clutches — these are not hardware problems. They’re calibration problems.
This guide explains how professional K04 boost control is dialled in on the EA113 platform, using real-world MK5 GTI case behaviour as reference.
The K04 Hardware Context

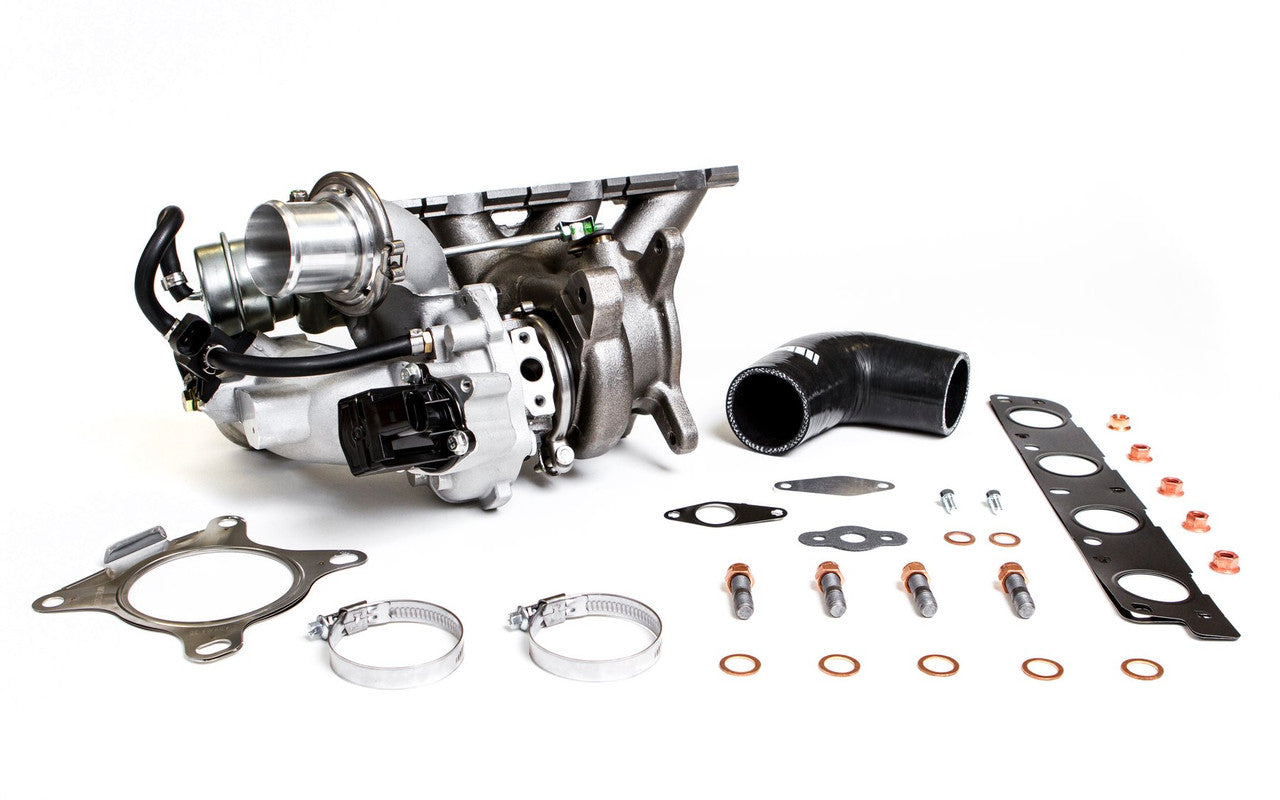

Most EA113 K04 conversions use BorgWarner units such as:
-
K04-0064
-
K04-0191
Common OE references include:
06F145702C
06F145702CX
06F145702F
Engine codes frequently paired with these setups:
BHZ, BWJ, BYD, BZC, CDLA, CDLB, CDLC, CDLD, CDLF, CDLG, CDLH, CDLK, CDMA
Vehicles typically running these K04 units:
Audi A3 / S3 / TT
VW Golf GTI / Scirocco
SEAT Leon
Skoda Octavia vRS
This shared ecosystem is why K04 knowledge transfers cleanly across VAG models.
The First Truth of K04 Tuning
A base file is only a starting point.
Logs finish the calibration.
No two:
-
Turbo actuators
-
Wastegate spring tensions
-
Exhaust systems
-
Intercoolers
-
Engines
behave identically.
This is why sending a generic “stage 2 file” for a K04 car almost always produces overboost or timing correction.
Case Study – Initial Base File Behaviour
On a freshly built BWA K04 MK5 GTI:
-
Base file loaded
-
Boost immediately exceeded 2 bar at 3200 rpm
-
Low boost duty still produced high boost
Meaning:
The actuator spring was very tight.
If left unchecked, this would:
-
Overshoot torque model limits
-
Cause severe timing pull
-
Risk rod failure
-
Stress the turbocharger
So the solution is not “reduce target boost”.
The solution is reshape boost control logic.
The Calibration Process
Proper K04 tuning follows an iterative loop:
-
Establish mechanical health
-
Log initial boost response
-
Adjust wastegate duty tables
-
Shape boost ramp-in
-
Stabilise midrange
-
Verify AFR and timing
-
Repeat until logs are clean
In this case, six revisions were required to achieve stable control.
Example of Safe Boost Shaping
Final controlled boost behaviour:
-
3000 rpm → 1.45 bar
-
4000 rpm → 1.60 bar
-
4500 rpm → 1.70 bar
-
5000 rpm → 1.60 bar
-
6000 rpm → 1.55 bar
-
6800 rpm → stable to redline
Notice:
-
No aggressive low-rpm surge
-
No midrange oscillation
-
Slight taper at high rpm to avoid timing pull
This keeps:
-
Rod load within safe limits
-
Exhaust temperature controlled
-
Knock correction minimal
-
Turbo within efficiency island
Why Low-RPM Surge Must Be Avoided
Attempting 1.8 bar below ~3000 rpm on EA113 commonly causes:
-
Compressor surge
-
Unstable airflow
-
Knock events
-
Excessive cylinder pressure
This is why professional files soften boost below the torque peak — even if the turbo is capable of more.
Fast does not mean reckless.
Timing as the Final Governor
On this platform, once airflow is stable:
-
AFR is set safely rich under load
-
Timing advance is increased until minimal correction
-
If timing pull appears, boost is reduced — not forced
This is how you make repeatable fast cars, not dyno heroes.
DSG Considerations
On DSG-equipped cars, gearbox calibration must accompany ECU tuning:
-
Higher clutch pressure
-
Faster shift routines
-
Torque intervention limits adjusted
Otherwise the ECU will make power the gearbox refuses to use.
ECU and TCU are one system.
The Takeaway
K04 tuning is not about “holding 1.8 bar to redline”.
It’s about:
-
Shaping airflow
-
Respecting cylinder pressure
-
Controlling heat
-
Building repeatable acceleration
When done correctly, a K04 EA113:
-
Pulls hard
-
Logs clean
-
Lives long
-
Feels factory-smooth
That’s the difference between a file and a calibration.
