Introduction
In modern diesel engines, fuel pressure is everything.
Airflow might determine potential power, and injection quantity commands how much fuel is requested — but rail pressure determines whether that fuel is delivered cleanly, efficiently, and safely.
Many remaps fail not because of bad boost control or poor fuelling strategy, but because rail pressure collapses under load. Without logging it, the tuner is blind.
This guide explains:
• What common rail pressure means
• What healthy pressure logs look like
• How to spot weak pumps, leaking injectors, or bad maps
• Why pressure stability matters before and after a remap
Once you understand rail pressure behaviour, you can instantly identify hidden fuelling faults that basic diagnostics miss.
What Common Rail Pressure Means

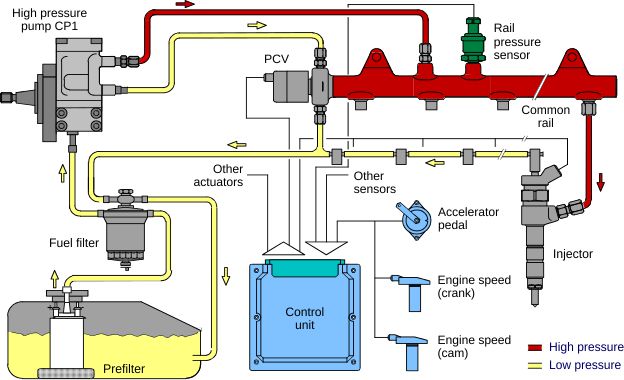

Common rail systems store fuel in a high-pressure accumulator (“the rail”) supplying all injectors.
Typical modern diesel rail pressures:
• Idle: 250–350 bar
• Cruising: 400–800 bar
• Full load (stock): 1,200–1,600 bar
• Full load (tuned): 1,500–2,000 bar
The ECU constantly adjusts:
• Pump control valve
• Rail pressure regulator
• Injection duration
To maintain the commanded pressure target.
If pressure cannot meet target, combustion suffers.
Why Rail Pressure Matters in Tuning
When tuning increases injection quantity:
• More fuel is demanded per stroke
• The pump must supply more volume
• Rail pressure must stay stable
If pressure drops:
• Injectors stay open longer
• Atomisation worsens
• Smoke increases
• EGT rises
• Power gains fall short
Many “bad remaps” are simply rail pressure starvation.
Parameters to Log
For proper rail diagnostics, log:
• RPM
• Rail pressure (actual)
• Rail pressure (target)
• Injection quantity (mg/stroke)
• Pump duty or pressure control valve (if available)
Perform a 3rd-gear full-load pull from ~1,500 RPM to near redline.
This standardised test makes logs comparable across vehicles.
What a Healthy Rail Pressure Log Looks Like
During a full-load pull:
• Target rail pressure rises smoothly
• Actual rail pressure closely follows target
• No sudden drops
• No oscillation
• Pump duty increases but remains below maximum
This indicates:
• High-pressure pump is healthy
• No major injector leakage
• Fuel supply system stable
• Map is requesting achievable pressure
Signs of Rail Pressure Problems
1) Pressure Drop at High Load
Symptoms:
• Target = 1,600 bar
• Actual = 1,350 bar falling with RPM
Likely causes:
• Weak high-pressure pump
• Blocked fuel filter
• Excessive injector leak-off
• Over-aggressive fuelling in map
2) Pressure Oscillation
Symptoms:
• Actual pressure hunts above/below target
• Pump duty constantly fluctuates
Likely causes:
• Sticky pressure control valve
• Air in fuel system
• Poor PID calibration in map
3) High Pump Duty with Normal Pressure
Symptoms:
• Rail pressure matches target
• Pump duty near maximum
Likely causes:
• Pump nearing capacity limit
• Early sign of wear
• Risk zone for tuned setups
4) Slow Pressure Rise
Symptoms:
• Target rises quickly
• Actual lags behind
Likely causes:
• Weak low-pressure supply pump
• Fuel filter restriction
• Air leaks in supply line
Before a Remap: Baseline Pressure Check
Professional workflow:
• Log stock rail pressure
• Confirm pressure meets factory target
• Confirm no high pump duty
• Confirm no drop at redline
If stock pressure isn’t healthy, tuning will amplify the problem.
After a Remap: Validation Log
Post-tune confirmation:
• Actual pressure follows new target
• No pressure drop at high RPM
• Pump duty remains within safe margin
• IQ increase is supported by fuel system
This ensures:
• Power gains are real
• Combustion stays clean
• Long-term pump reliability
Real-World Example
Stock:
• Target: 1,350 bar
• Actual: 1,340 bar
• Pump duty: 62%
Tuned:
• Target: 1,600 bar
• Actual: 1,590 bar
• Pump duty: 78%
Result:
• Healthy fuel system
• Good tuning margin
• Safe operation
Bad example:
• Target: 1,600 bar
• Actual: 1,420 bar dropping with RPM
• Pump duty: 95%
Diagnosis:
• Fuel system at limit
• Risk of smoke and EGT rise
• Needs hardware attention before further tuning
Why This Matters for Business Reputation
A tuner who verifies rail pressure:
• Prevents comeback complaints
• Avoids injector or pump failures
• Delivers consistent power
• Builds trust with informed customers
Ignoring fuel pressure is gambling with expensive hardware.
The Takeaway
Common rail pressure is the backbone of diesel performance.
If you log it:
• You catch hidden fuel faults early
• You validate remaps properly
• You avoid unsafe fuelling
• You tune with engineering confidence
No rail pressure log = incomplete diagnostic picture.
