Converting Your K03-Based TFSI Engine to a 350+ HP K04 Setup

This guide covers the conversion of AXX and BWA EA113 2.0 TFSI engines from the factory K03 turbocharger to a K04-064 turbocharger setup, capable of delivering 350+ horsepower when correctly supported and calibrated.

Typical performance results from a well-executed conversion:

• 350–375 hp

• 350–380 lb-ft torque

This conversion is suitable for MK5 GTI and other EA113-equipped VAG platforms using K03 turbochargers as standard.

Minimum Hardware Requirements for AXX & BWA K04 Conversion

To achieve safe and reliable performance, the following supporting hardware is required:

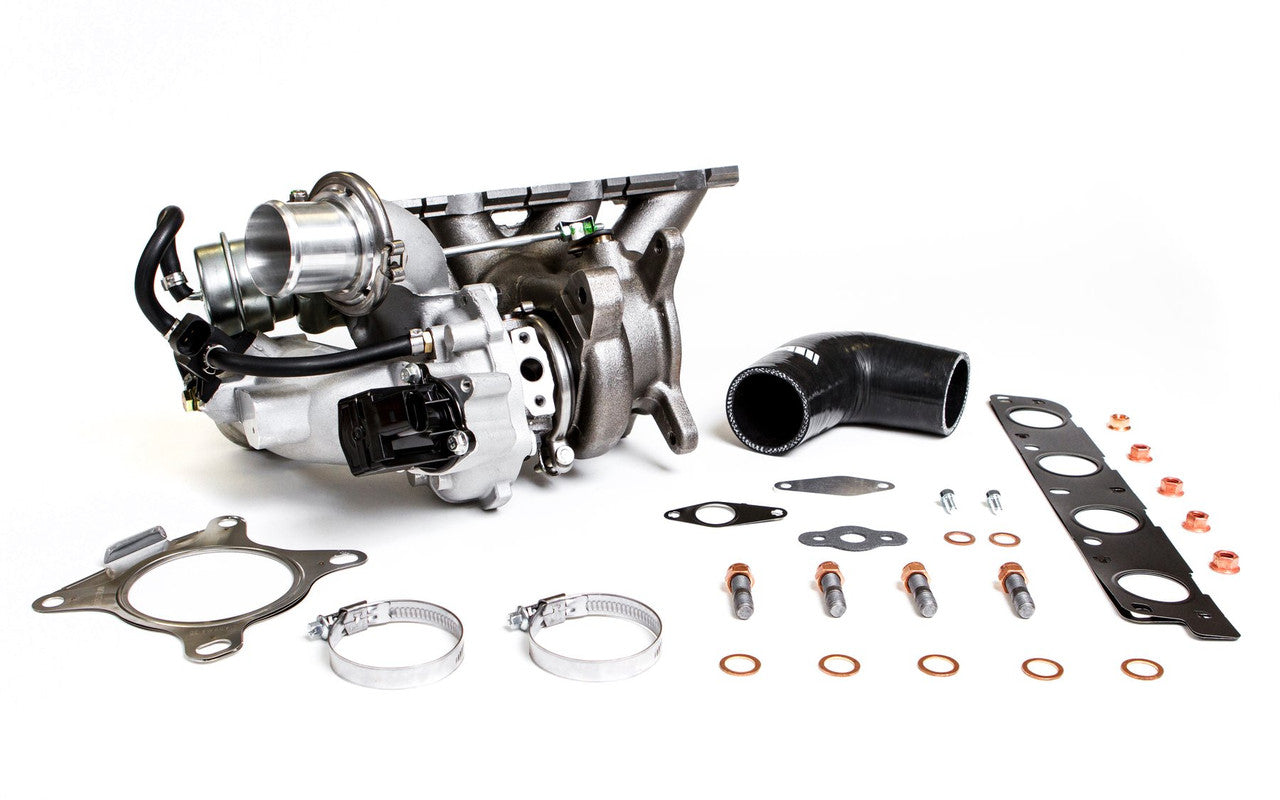

• K04-064 turbocharger & compatible injector setup

• Upgraded HPFP (High Pressure Fuel Pump)

• RS4 FRPV – 136 bar Fuel Rail Pressure Valve

• 200 bar Fuel Rail Pressure Sensor

• 3 bar MAP Sensor

• Full performance exhaust system (high-flow sports catalyst or equivalent)

• Upgraded front-mount intercooler

• High-flow cold air induction kit

• 5W-40 fully synthetic engine oil

• 98+ RON fuel (Shell V-Power / Tesco 99 recommended)

Optional Supporting Hardware for Enhanced Performance

• Intake manifold runner flap delete system

• Upgraded performance clutch

• Water-methanol injection

• Larger boost pipework

Calibration and Setup Process

A proper K04 conversion is completed with a full calibration session, including:

• Full pre-tuning mechanical health check

• ECU firmware upgraded to K04-based calibration framework

• Complete rescaling of MAP and fuel rail pressure sensors

• Boost control strategy tailored to the exact hardware configuration

• Typical K04 boost operation in the 1.5 – 1.7 bar range, depending on setup

• Variable valve timing (VVT) and torque intervention mapping optimised for increased airflow

• Advanced traction control strategy integrated for higher power output

• Custom throttle and boost response mapping to suit driver preference

• Typical full custom calibration session time: approximately 3 hours

Multi-map switching can also be configured, allowing different power levels for:

• Daily driving

• Wet or winter conditions

• Reduced-torque modes

• Maximum performance mode

AXX & BWA Compression Ratio Differences

AXX and BWA engines differ from factory K04 EA113 engines in compression ratio:

How Compression Ratio Affects K04 Conversions

Higher compression AXX and BWA engines:

• Spool the K04 turbo faster

• Deliver stronger low-RPM response

• Produce efficient power at lower boost levels

However, higher compression also means:

• Increased knock sensitivity at elevated boost

• Greater dependence on efficient intercooling

• More careful ignition calibration required

As a result:

• Peak dyno figures may appear slightly lower than factory K04 engines

• But average torque across the rev range is often higher

• Producing quicker real-world acceleration

This is why power curve shape matters more than peak numbers alone.

Supporting Hardware and Power Expectations

To achieve 350+ hp, supporting modifications equivalent to a Stage 2+ K03 setup are required:

• Full exhaust system

• Front-mount intercooler

• Upgraded HPFP

• Performance intake

• Suitable clutch upgrade (manual) or gearbox calibration (DSG)

Alternatively, more modest results around:

• 300–310 hp

• 300–320 lb-ft

can be achieved by installing K04 hardware with minimal supporting modifications, though ultimate performance will be limited by airflow, fuelling, and exhaust restriction.

Real-World Dyno Results Example

A 2006 MK5 GTI BWA manual with full K04 conversion achieved:

• 370 hp

• 388 lb-ft

This setup featured highly efficient airflow and fuelling. With an upgraded low-pressure fuel pump, results were projected to approach:

• 380–400 hp

• ~380–400 lb-ft

Typical completed builds commonly achieve:

• 355–365 hp average

Multi-Map Power Switching

Multi-map setups allow multiple power profiles in one ECU calibration.

Example use cases:

• Reduced-power daily mode

• Wet or winter driving mode

• Linear-response mode

• Full performance mode

Lowest power maps may be configured around 300 hp, while final performance maps deliver maximum calibrated output.

Final Notes

A K04 conversion on an AXX or BWA EA113 engine is not simply a turbo swap. It is a complete system upgrade involving:

• Airflow

• Fuelling

• Cooling

• Boost control

• Torque management

• Drivetrain compatibility

When executed correctly, the result is:

• Factory-smooth drivability

• Strong midrange torque

• Consistent high-RPM power

• Long-term reliability
