Introduction
The EA113 2.0 TFSI engine is one of the most iconic turbocharged petrol platforms ever fitted to VAG vehicles. Found in the MK5 Golf GTI, Edition 30, Audi A3 8P, Seat Leon Cupra, and Skoda Octavia vRS, this engine earned its reputation for one reason:
It responds exceptionally well to tuning.
But reliable tuning starts with understanding how the platform is built, how it fuels, how it controls boost, and where its true limits are. This guide gives a technical foundation for anyone working with K03 or K04 EA113 builds.

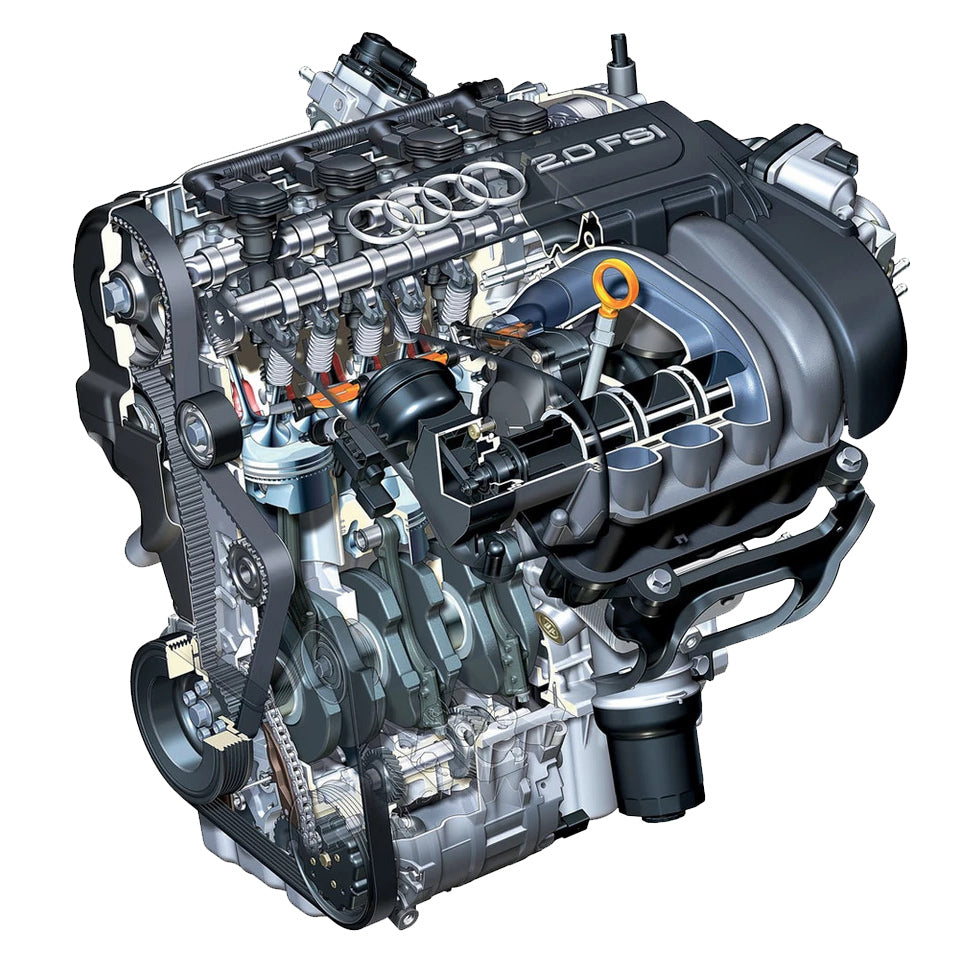

What is the EA113?
EA113 is Volkswagen Group’s designation for the cast-iron block, direct-injection, turbocharged 2.0 TFSI engine used from approximately 2005–2013.
Core characteristics:
• Cast iron engine block
• Aluminium cylinder head
• Timing belt driven camshafts
• Direct injection (FSI system)
• Cam-driven high-pressure fuel pump
• Bosch MED9 ECU control
Unlike later EA888 engines, EA113 uses a belt-driven valvetrain and external HPFP design, which gives it distinct tuning and diagnostic behaviour.
Factory Power Variants
K03-equipped models
• MK5 Golf GTI
• Audi A3 2.0 TFSI
• Skoda Octavia vRS
• Typical output: 197–200 BHP
K04-equipped models
• Golf GTI Edition 30
• Audi S3 8P
• Seat Leon Cupra
• Typical output: 230–265 BHP
The base engine architecture is shared — differences come from turbocharger, fuelling hardware, intake/exhaust layout, and ECU calibration. This is why K03 → K04 conversions are so successful on EA113.
Turbocharging Layout
EA113 engines mount the turbocharger directly to the cylinder head, producing:
• Rapid spool response
• Strong midrange torque
• High exhaust gas temperature under sustained load
From a tuning standpoint:
• K03 = Fast spool, limited airflow ceiling
• K04 = Later spool, strong top-end airflow
Understanding which turbo is fitted is the first step in safe calibration.
K03 Turbocharger – Factory Fitment and Platform Coverage
Most standard-output EA113 engines use the BorgWarner K03 turbocharger, designed for responsive daily drivability and strong low-end torque.
Vehicles Equipped with K03 EA113 2.0 TFSI
Audi
A3, A4, A6, TT — 197–200 BHP
SEAT
Altea, Toledo, Leon — 197–200 BHP
Skoda
Octavia vRS — 197–200 BHP
Volkswagen
Golf GTI (MK5), Eos, Passat, Jetta — 197–200 BHP
Common EA113 Engine Codes (K03 Platforms)
AXX, BGB, BPG, BPJ, BPY, BUL, BWA, BWA1, BWE, BWT, BYK,
CAWB, CBFA, CCTA, CCZA, CDLB
K03 Turbo OE Part Numbers
06F145701
06F145701B
06F145701C
06F145701EX
06F145701F
06F145701FX
06F145701GX
06F145701HX
06D145701B
06D145701C
06D145701F
06D145701FX
06D145701GX
06D145701HX
06D145701JX
BorgWarner K03 Reference Numbers
53039700086
5303-988-0086
53039880086
53039700087
5303-988-0087
53039880087
K03 Performance Characteristics
• Extremely fast spool
• Strong low-end torque
• Peak efficiency around 240–260 BHP
• Rising exhaust backpressure above ~1.3–1.4 bar sustained boost
• Increased intake air temperature under aggressive tuning
This makes K03 ideal for Stage 1 and mild Stage 2 setups — but also explains why K04 conversions are the natural next step.
K04 Turbocharger – Factory Fitment and OE Reference Data
Higher-output EA113 variants use BorgWarner K04 turbochargers, providing significantly increased airflow and top-end power capability.
K04 Core OE Part Number
OE Part No:
5304-710-0518
53047100518
This Unit Fits the Following Turbo Variants
5304-970-0064
53049700064
5304-980-0064
53049800064
5304-988-0064
53049880064
53049980064
5304-970-0191
53049700191
5304-980-0191
53049800191
5304-988-0191
53049880191
53049980191
Common K04 identifiers:
K04-0064 / K04-064
K04-0191 / K04-191
Vehicles Commonly Fitted with These K04 Turbochargers
Audi A3
Audi S3
Audi TT
SEAT Leon Cupra
Volkswagen Golf GTI Edition 30
Volkswagen Scirocco
K04 EA113 Engine Codes
BHZ
BWJ
BYD
BZC
CDLA
CDLB
CDLC
CDLD
CDLF
CDLG
CDLH
CDLK
CDMA
K04 Vehicle OE Numbers
06F145702C
06F145702CX
06F145702F
K04 Performance Characteristics
• Higher airflow capacity than K03
• Safe 330–380 BHP capability on correct supporting hardware
• Requires HPFP upgrade for sustained rail pressure
• Higher charge air cooling demand
• Strong top-end power delivery
Correct calibration is critical here — generic K04 files often underdeliver fuel or mismanage torque modelling, which is why proper logging-based tuning matters.
Direct Injection Fuel System
EA113 uses a two-stage fuelling system:
• In-tank low pressure pump
• Cam-driven high pressure fuel pump (HPFP)
Rail pressure typically runs 110–130 bar under load.
Tuning implications:
• Stage 1 / mild Stage 2 = stock HPFP sufficient
• K04 builds = HPFP upgrade required
• Fuel pressure logging is essential for safe AFR control
ECU Control – Bosch MED9
All EA113 engines are controlled by Bosch MED9, managing:
• Boost control
• Torque modelling
• Ignition timing
• Knock regulation
• Fuel pressure
• Electronic throttle
MED9 is highly flexible — but only when calibrated using real data logs, not generic file templates.
Known Mechanical Weak Points
• Diverter valve diaphragm failure
• PCV valve failure
• HPFP cam follower wear
• Coil pack breakdown
• Intake valve carbon build-up
A professional tuner always diagnoses these before calibration.
Why EA113 Remains Popular
• Cast iron block handles high cylinder pressure
• Forged crankshaft from factory
• Strong connecting rods (especially K04 variants)
• Huge aftermarket ecosystem
• Proven 400+ BHP potential on stock internals
Final Takeaway
EA113 isn’t just a “tuneable engine”.
It’s a platform with known data, known limits, and known upgrade paths.
When hardware identification, data logging, and calibration are done properly — the results are reliable, repeatable, and safe.
That’s how professional tuning is done.
