Modern VAG vehicles equipped with DSG (Direct Shift Gearbox) transmissions rely on adaptive learning to maintain smooth shifting, clutch engagement accuracy, and long-term gearbox health. After servicing, repairs, software updates, or performance tuning, running DSG adaptations ensures the gearbox re-calibrates clutch bite points, pressure regulation, and shift timing.

This guide explains when, why, and how to perform DSG adaptations correctly using VCDS (VAG-COM Diagnostic System).

What Are DSG Adaptations?

DSG gearboxes use electro-hydraulic clutch packs controlled by the mechatronic unit. Over time, clutch friction characteristics change due to wear, oil ageing, or increased torque from remapping. The gearbox continuously learns these changes, but after certain work, stored adaptation values must be reset so the transmission can re-learn optimal parameters.

Adaptations primarily recalibrate:

• Clutch engagement (bite point)

• Hydraulic pressure regulation

• Gear selection timing

• Shift smoothness

• Launch control readiness (where applicable)

Without adaptation, symptoms may include:

• Jerky take-off

• Harsh upshifts or downshifts

• Slipping under load

• Delayed gear engagement

• DSG “limp mode” faults

When Should You Perform DSG Adaptations?

Run adaptations after:

• DSG oil and filter service

• Clutch pack replacement

• Mechatronic repair or replacement

• ECU or TCU remapping

• Software updates or coding changes

• Persistent rough shifting complaints

For tuned vehicles, adaptations are strongly recommended after gearbox remaps to ensure the new torque and pressure targets align with clutch behaviour.

Requirements Before Starting

To perform DSG adaptations correctly, ensure:

• VCDS installed on a laptop

• Compatible VAG diagnostic cable

• Battery charger connected (stable voltage above 12.5V)

• Engine fully warmed (oil temperature 30–60°C depending on gearbox)

• No stored gearbox fault codes

• DSG oil level correct

If faults are present, clear and resolve them before running adaptation.

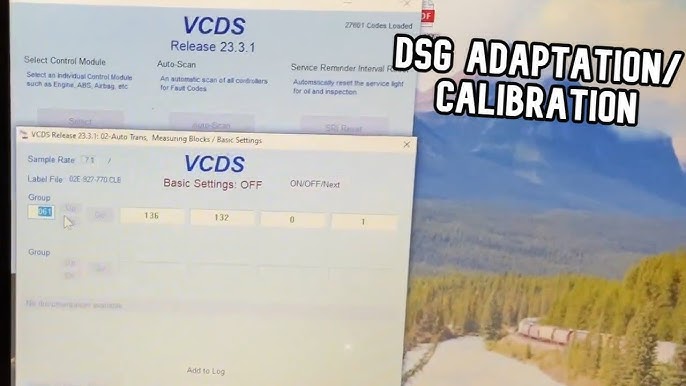

Step-By-Step DSG Adaptation Procedure (VCDS)

1. Connect VCDS

• Plug diagnostic cable into OBD port

• Open VCDS

• Switch ignition ON (engine OFF initially)

2. Select Gearbox Control Module

• Select [02 – Auto Trans]

3. Check for Fault Codes

• Select Fault Codes

• Clear any stored codes if no active mechanical faults exist

4. Open Basic Settings

• Select [Basic Settings]

5. Run DSG Clutch Adaptation

Depending on gearbox type, use one of the following groups:

DQ200 / DQ250 / DQ381 / DQ500 common groups:

• Group 060 – Reset clutch adaptation

• Group 061 – Clutch valve calibration

• Group 062 – Gear engagement calibration

(Some newer gearboxes use IDE adaptation channels instead of group numbers. VCDS will label them clearly as “Clutch adaptation” or “Basic setting of clutch valves”.)

6. Execute Each Group

For each group:

• Select group number

• Click [Go]

• Wait until status shows “Finished correctly”

Do not touch throttle or gear selector during the process.

7. Perform Drive Adaptation Run

After basic settings complete:

• Start engine

• Select Drive

• Drive gently for 10–15 minutes

• Allow smooth acceleration and deceleration

• Avoid aggressive throttle during learning phase

The gearbox will fine-tune shift pressure and clutch bite points during this drive.

Important Notes

• Voltage must remain stable — low voltage causes failed adaptations

• Oil temperature too hot or too cold prevents completion

• If adaptation fails, repeat after clearing faults

• Always perform adaptation after DSG remap for best results

Common DSG Adaptation Faults

Benefits of Proper DSG Adaptation

• Smoother gear changes

• Improved clutch longevity

• Faster shift response

• Reduced mechatronic stress

• Correct operation after tuning

For performance builds, correct adaptation is essential to safely handle increased torque.

Professional Tip

On tuned vehicles, always:

• Run DSG adaptation

• Reset gearbox learned values

• Perform a controlled road adaptation run

Skipping this step is one of the most common causes of post-remap gearbox complaints.
